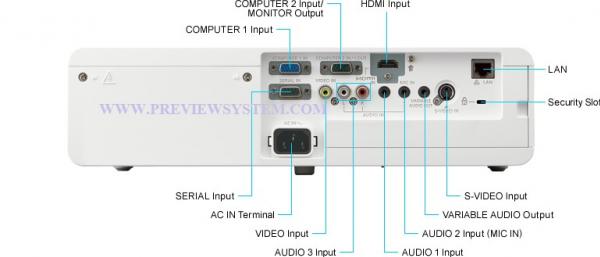

มีช่องสัญญาณ ดังนี้

• HDMI 19-pin x 1 (compatible with HDCP, Deep Color), audio signal: linear PCM (sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz)
• COMPUTER 1 IN D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR)
• COMPUTER 2 IN /MONITOR OUT D-sub HD 15-pin (female) x 1 (RGB), (input/output selectable using on-screen menu)
• VIDEO IN Pin jack x 1 (Composite VIDEO)
• S-VIDEO IN Mini DIN 4-pin x 1 (S-VIDEO)
• AUDIO IN 1 M3 x 1 (L-R x 1)
• AUDIO IN 2 (MIC IN) M3 x 1 (L-R x 1) for audio input or for microphone connection (variable)
• AUDIO IN 3 Pin jack x 2 (L, R x 1)
• AUDIO OUT M3 x 1 (L-R x 1) for output (variable)
• LAN RJ-45 x 1 (for network connection, 10BASE-T/100BASE-TX, compliant with PJLink™)
• SERIAL IN D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
• Power supply AC100–240 V 50 Hz/60 Hz
