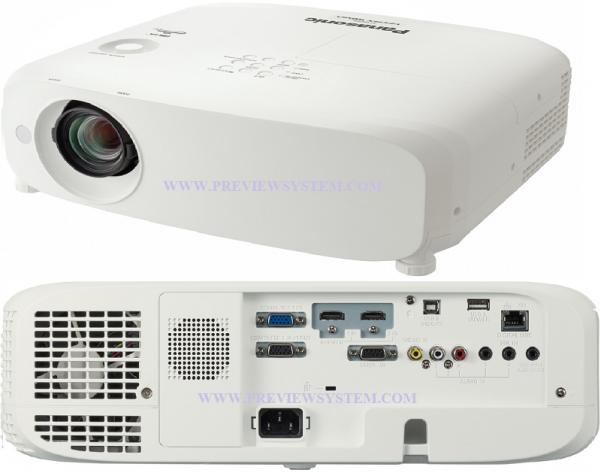

มีช่องสัญญาณ ดังนี้

• HDMI IN: HDMI 19-pin × 2 (Deep Color, compatible with HDCP), audio signal: Linear PCM [sampling frequency: 48 kHz/44.1 kHz/32 kHz]
• COMPUTER IN 1: D-sub 15-pin (female) x 1 (RGB/Y • PB (CB) • PR (CR)/S-Video
• COMPUTER IN 2/MONITOR OUT: D-sub 15-pin (female) x 1 (RGB/Y • PB (CB) • PR (CR) (input/output switching)
• VIDEO IN: Pin jack x 1
• AUDIO IN 2: M3 jack (L/R) x 1, compatible with MIC input
• SERIAL IN: D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
• AUDIO OUT: M3 jack (L/R) x 1 (monitor out: variable)
• AUDIO IN 3: Pin jack (L/R) x 1
• SERIAL IN: D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
• USB A: Type A for Memory Viewer x 1
• USB B: Type B for USB Display x 1
• LAN/DIGITAL LINK: RJ-45 × 1
• for network connection, DIGITAL LINK, 100Base-TX, compatible with PJLink™
• Power supply AC100–240 V 50 Hz/60 Hz
